PP Jumbo Bag Coated Top and Bottom Spout

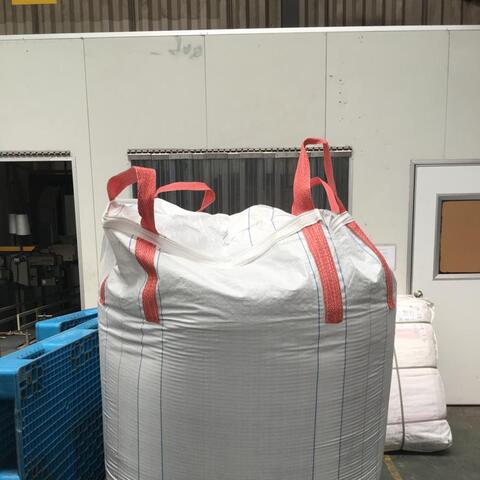

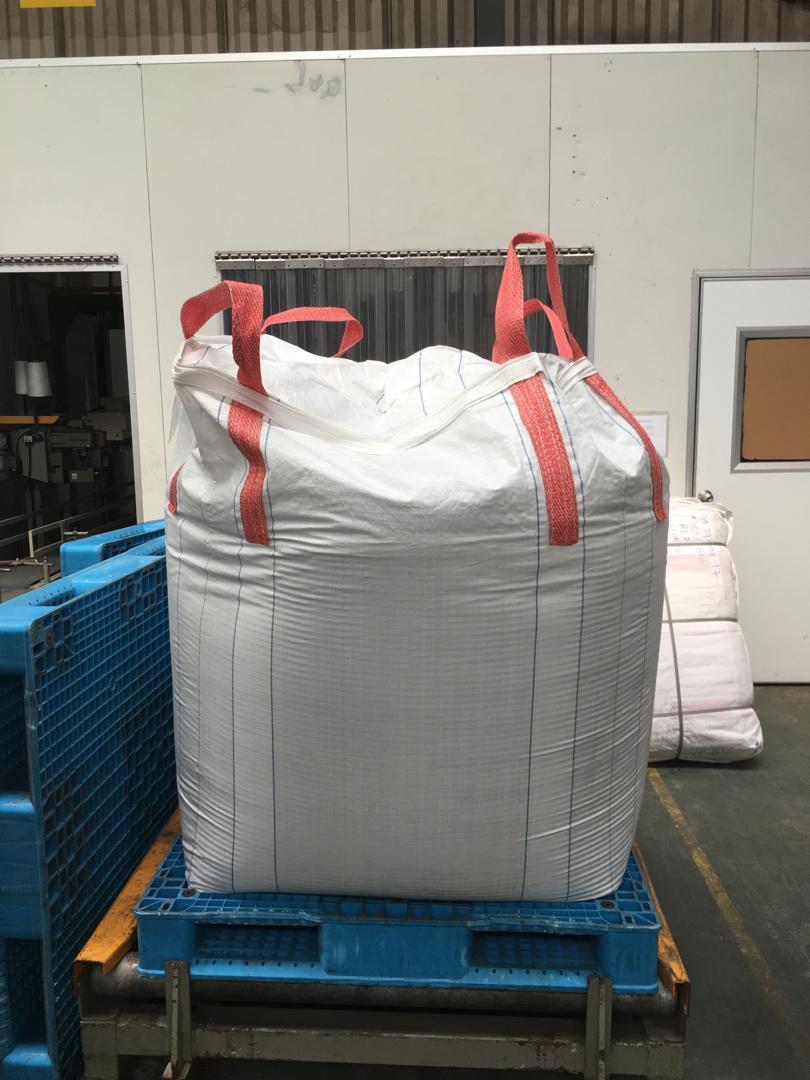

PP Baffle Bag Top Duffle Bottom Spout

Internal fabric panels (baffles) are sewn across the four corners of the bag. When filled, these baffles allow the material to flow into the corners while preventing the bag from bulging outward into a round shape. It stays square, saving valuable space on trucks and in warehouses.

A large, skirt-like fabric extension (or top skirt) at the mouth of the bag. It provides a wide-open top for fast, easy filling, and it features an integrated tie string or cord to securely cinch the top shut after filling. A narrow, cylindrical fabric tube (discharge chute) at the base of the bag. It allows for controlled, clean, and dust-minimized emptying or discharging of the contents into bins, mixers, or processing equipment by simply untying a cord.

General Product & Load Information

Safe Working Load (SWL)

1000 kg / 2204.62 lbs

Safety Factor (SF)

3:1 (single use)

Intended Use

One-trip / Single use

Storage Environment

Indoor

Packing Capacity

1000 kg / 2204.62 lbs

Industrial Use

Holding plastic pellets, polymer resins, and synthetic powders.


Bag Construction & Style

Body Construction

4-Panel

Fabric Material

100% Virgin PP

Fabric Weight (GSM)

160

Coating

Uncoated / Unlaminated (Breathable)

UV Treatment

No

Color

White


Top & Bottom Configuration

Top Style (Diameter  x Height  ±2cm)

Skirt/Duffle Top (100 cm)

Bottom Style (Diameter  x Height  ±2cm)

Spout Bottom (40 x 45 cm)


Lifting & Handling Features

Lifting Loops/Straps

Cross-corner Loops Top waist belt


Liners & Accessories

Liner (Internal Bag)

No

Printing

No

Document Pocket

DIN A4

Labelling

Yes


Dimensional Options

Product Code

105*105*120+H100+H45*40+W (BAFFLE)

Size (Length × Width x Height  ±2cm)

105*105*120 cm / 41*41*47 in

Bag Weight (±3%)

2.30 kg


Commercial Logistics & Packaging

Packaging

200 pcs per bale

Packaging Dimensions

110*110*70 cm

Packaging Weight (±3%)

264.6 kg


Availability

Ready Stock
